My4TH - FORTH set of two boards 8-Bit SBC

Product detailed description

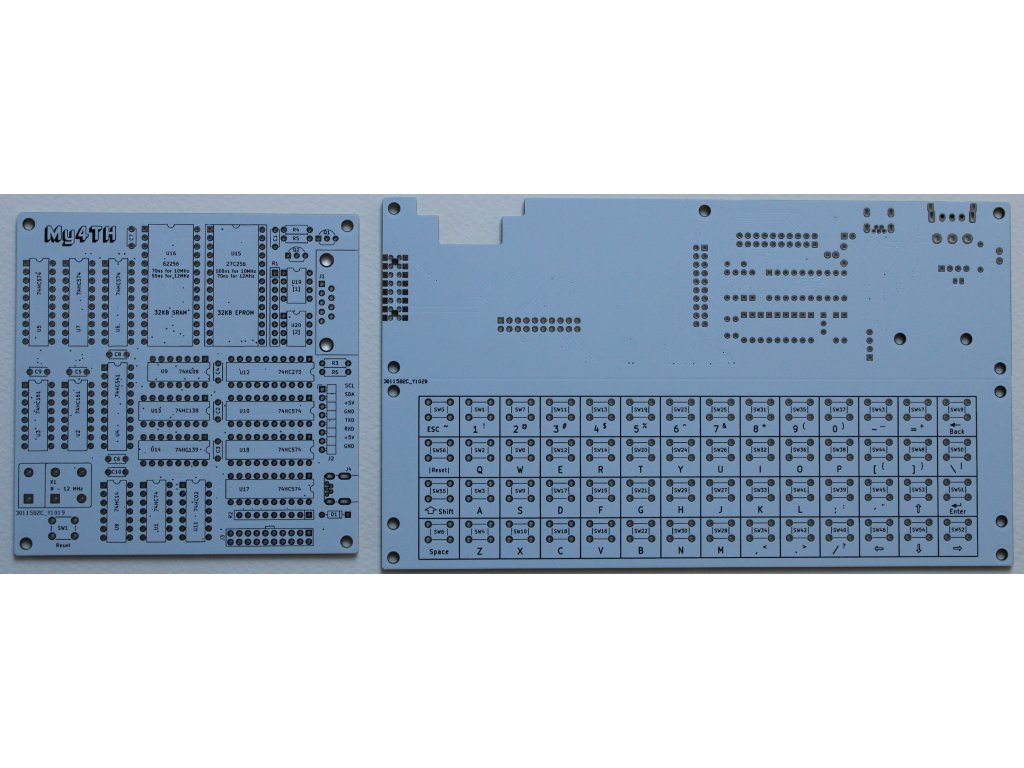

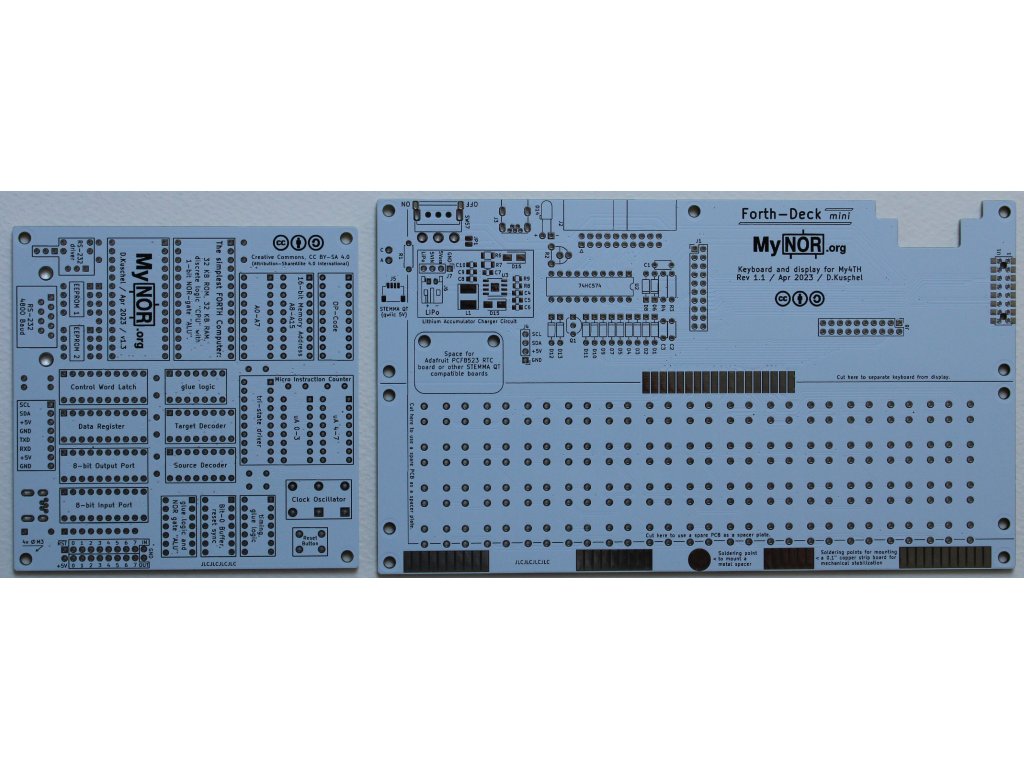

Set of two PCBs for My4TH - FORTH, CPU less computer SBC

project is available on: http://mynor.org/my4th.htm

Material: FR4
Solder mask color: clear white (the photo doesn't show accurate color)
Technical specification:

- 8-bit discrete logic CPU
- 8 to 14 MHz clock frequency
- 32 KB ROM, 32 KB RAM
- up to 256 KB EEPROM
- 1-bit NOR gate "ALU"
- 6300 8-bit additions / sec
- 4 memory chips
- 16 CMOS logic chips
- RS-232 with 4800 baud
- I2C-bus for extensions
- 6 digital inputs
- 5 digital outputs

Dimensions PCB ( Length × Width × Height ): 100 mm x 100 mm x 1,6 mm
Dimensions PCB ( Length × Width × Height ): 190 mm x 110 mm x 1,6 mm
Item weight:  102 g
