68K-MBC LITE hw version components kit for DIY assembly CP/M

Product detailed description

the DIY kit of the key components for building 68K-MBC single board computer ready to run CP/M-68K system.

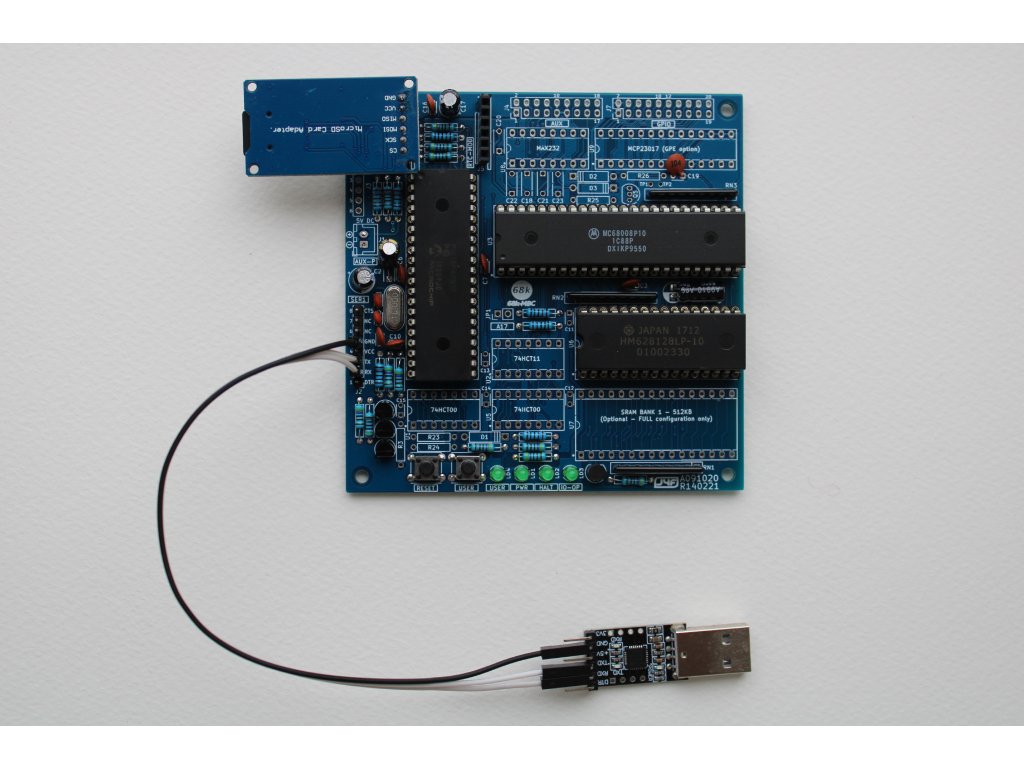

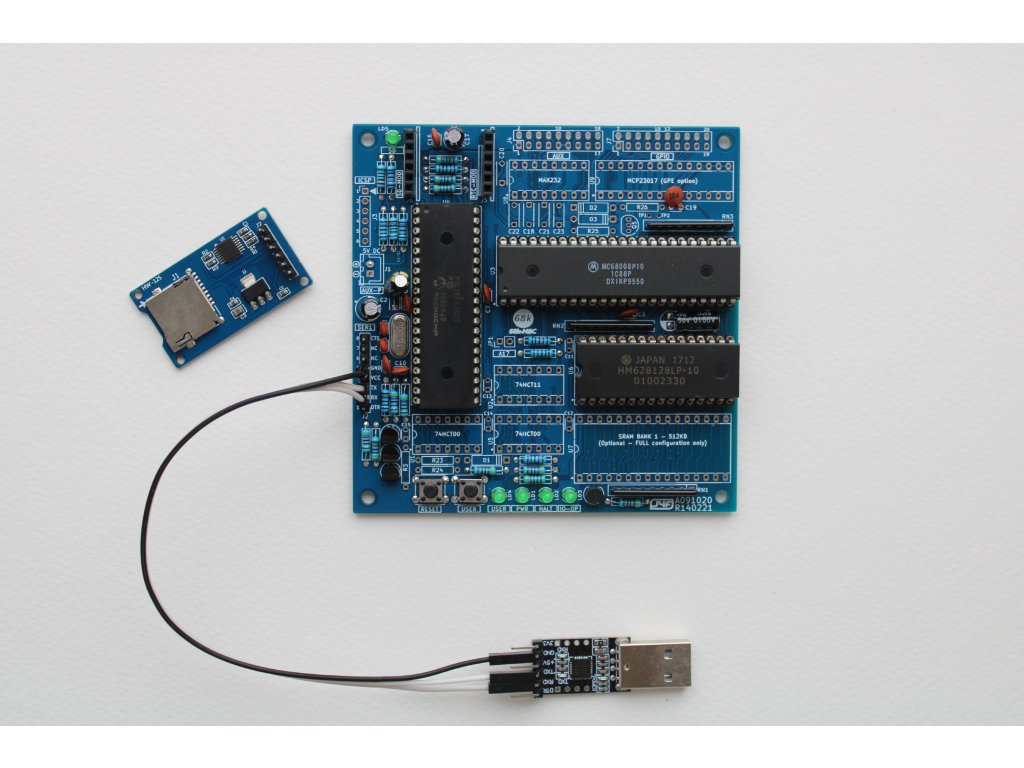

The kit contains chips for LITE version with 128kB RAM, refer to the listing photos for assembly details.
The bill of material for LITE version is available on the project site:

https://hackaday.io/project/177988-68k-mbc-a-3-ics-68008-homebrew-computer

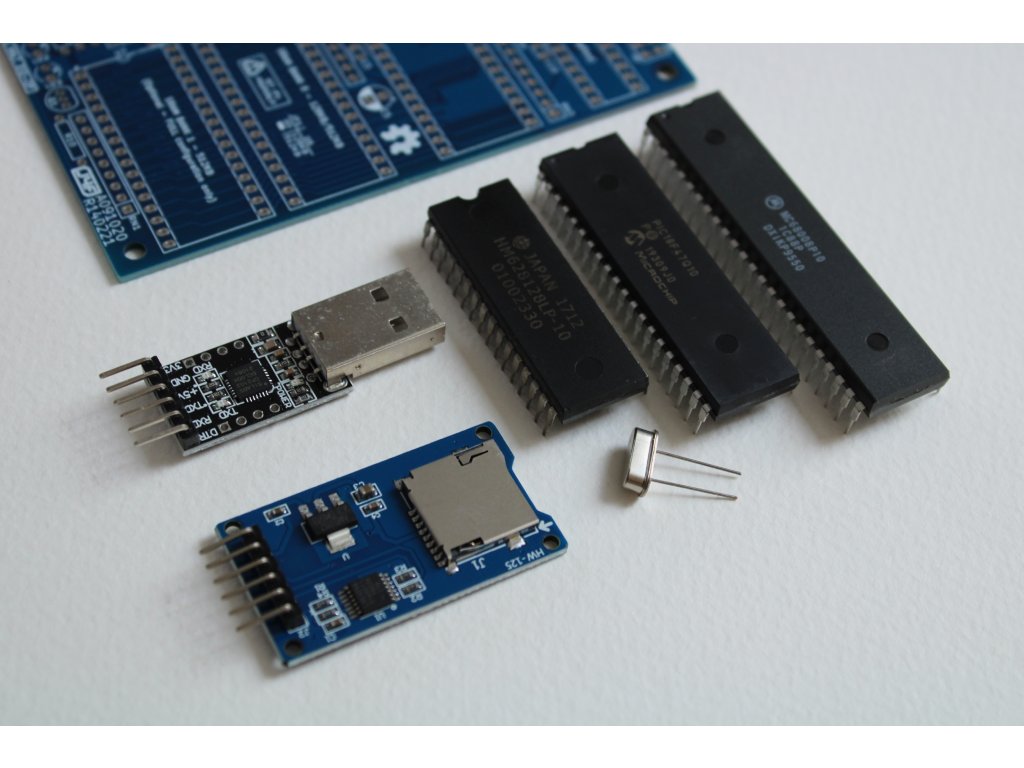

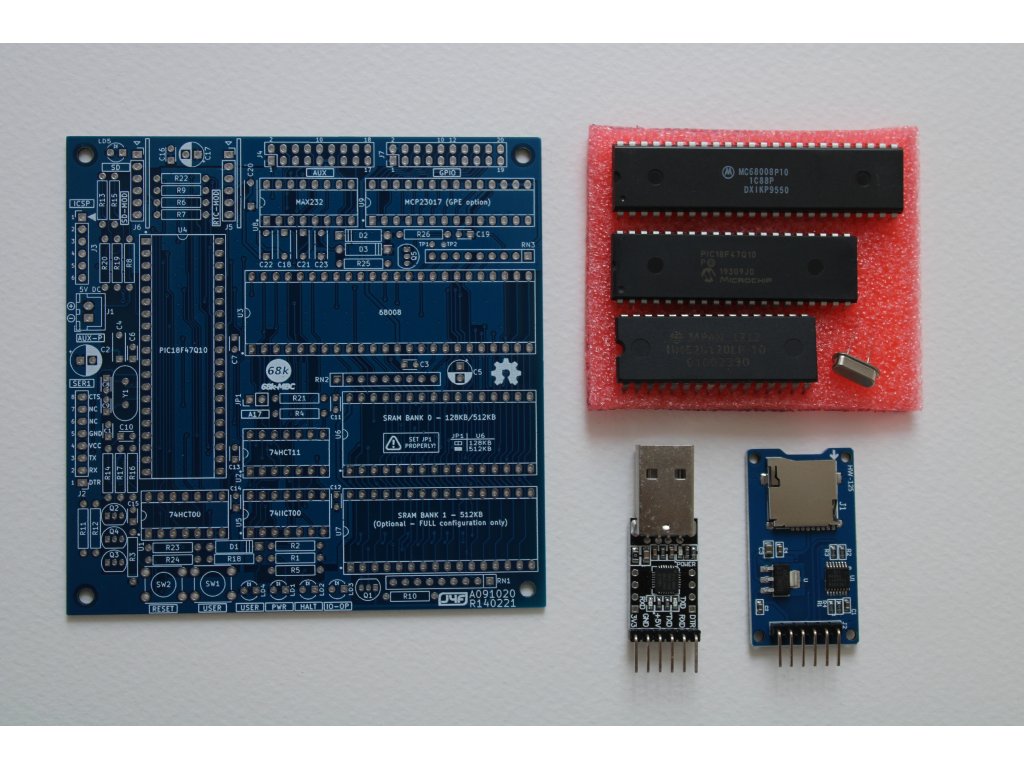

You will receive:

- the new bare PCB for Z80-MBC2
- 1pc M68008P10 CPU
- 1pc PIC18F47Q10 (pre-programmed with the firmware)
- 1pc HM628128 SRAM 128kB memory
- 1pc 16MHz crystal
- 1pc USB to UART converter
- 1pc micro SD card adapter

Note to use external 5V power supply, powering the SBC from USB converter causes stability and boot failure issues.

All ICs were individually tested with 68K-MBC board, the chips can have signs of soldering material on pins and minor scratches.

Dimensions PCB ( Length × Width × Height ): 100 mm x 100 mm x 1,6 mm
Item weight:  65 g
