RC6502 Apple 1 Replica rev H kit for DIY assembly

Product detailed description

This is DIY kit of the key components for building single-board Apple 1 computer replica.

Documentation is available on: https://github.com/tebl/RC6502-Apple-1-Replica.

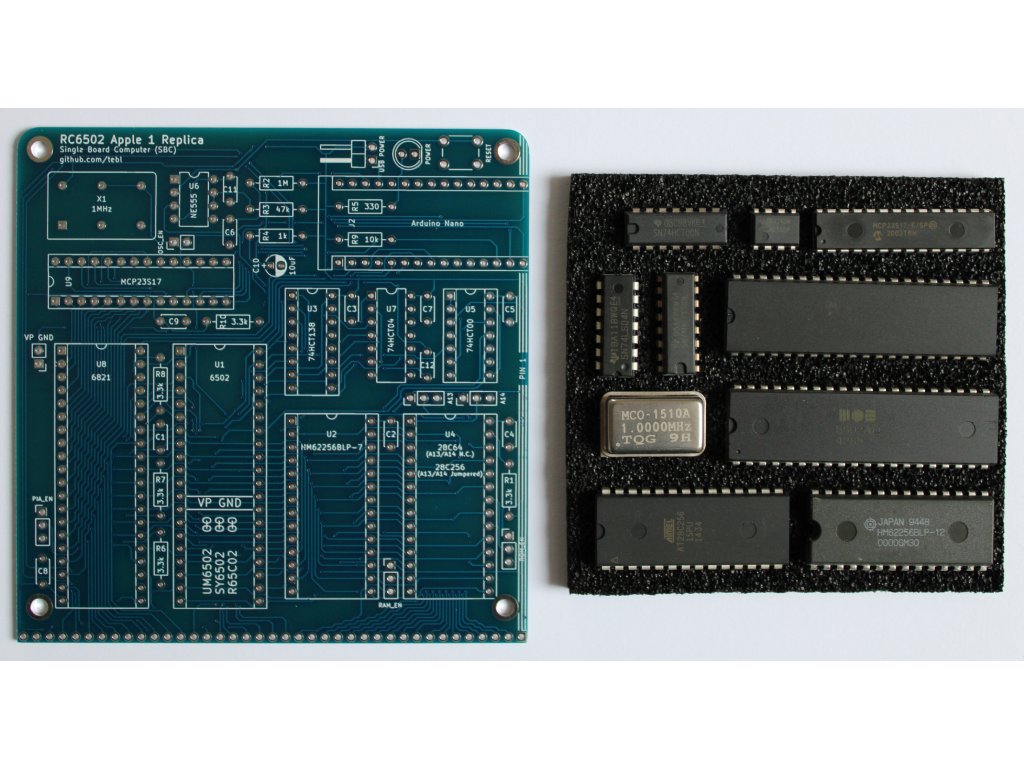

You will receive:

- the new bare PCB for RC6502 Rev H Apple 1 Replica

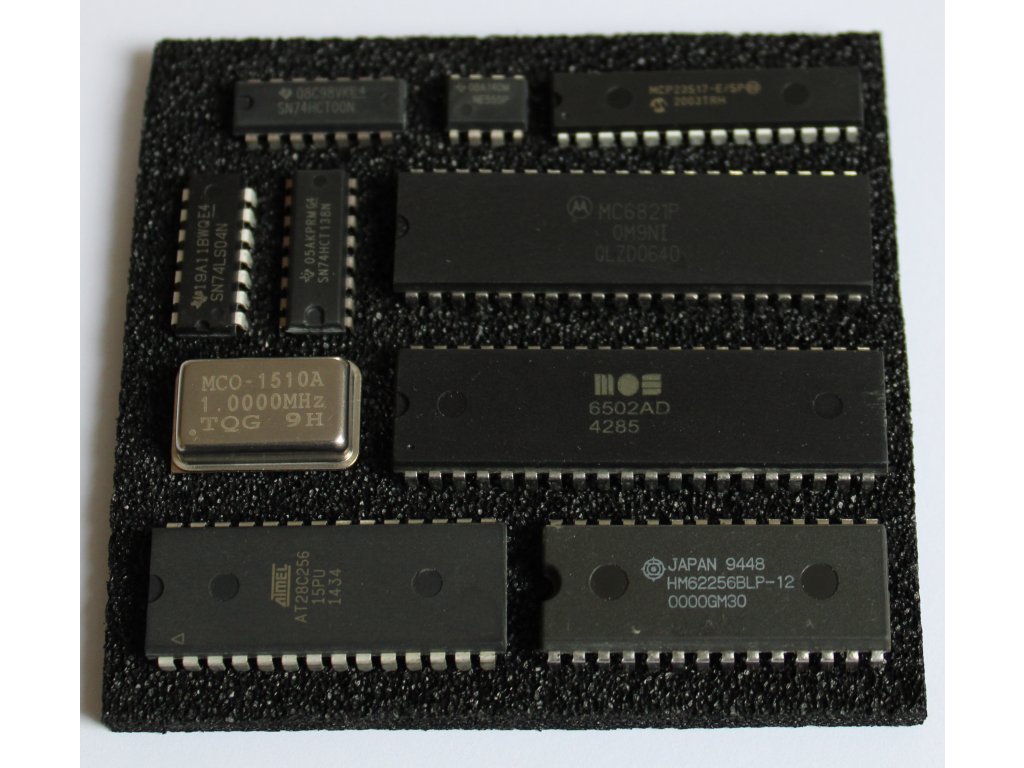

- 1pc MOS6502 (used in a good condition)
- 1pc MC6821P (used in a good condition)
- 1pc HM62256 (used in a good condition)
- 1pc AT28C64 or AT28C256 (pre-programmed, used in a good condition )
- 1pc 1.000MHz crystal oscilator (new)
- 1pc 74LS00 or 74HCT00 (new)
- 1pc 74LS138 or 74HCT138 (new)
- 1pc 74LS04 or 74HCT04 (new)
- 1pc NE555 (new)
- 1pc MCP23S17 (new)

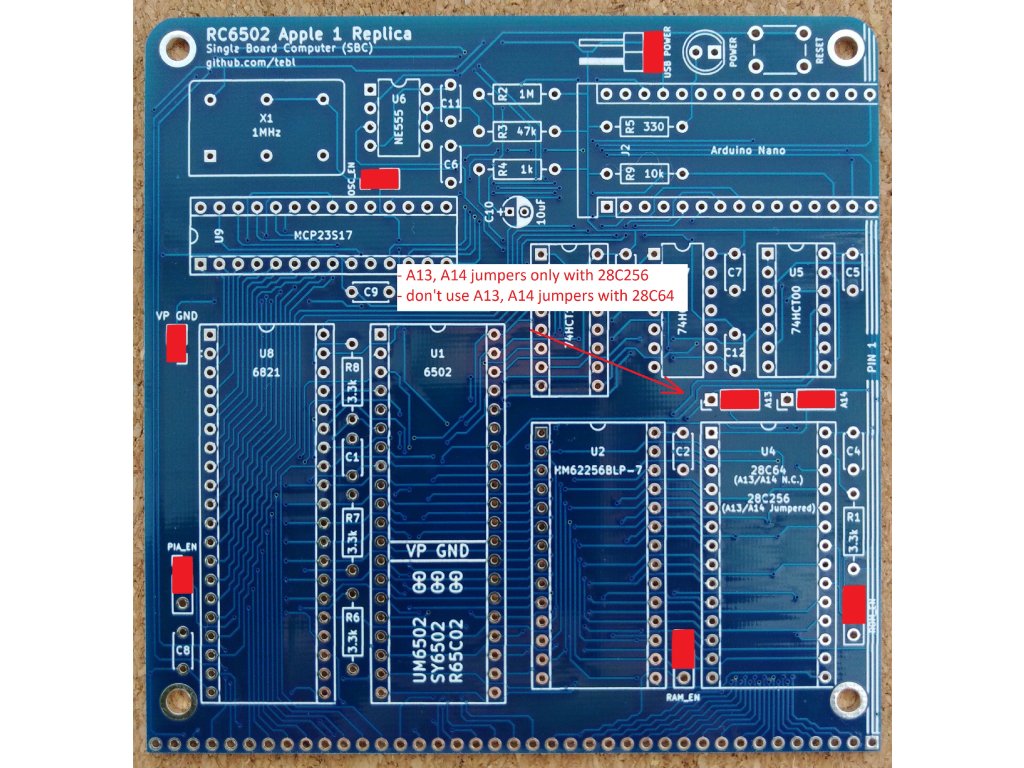

Make sure to install all jumpers as shown in the pictures.
Used ICs are individually tested with RC6502 SBC, can have signs of soldering material on pins and scratches on the package

Dimensions PCB ( Length × Width × Height ): 99 mm x 99 mm x 1,6 mm
Item weight:  65 g
