XT CF LITE KIT rev4.1 ISA CompactFlash Adapter XT CF_Lite

Product detailed description

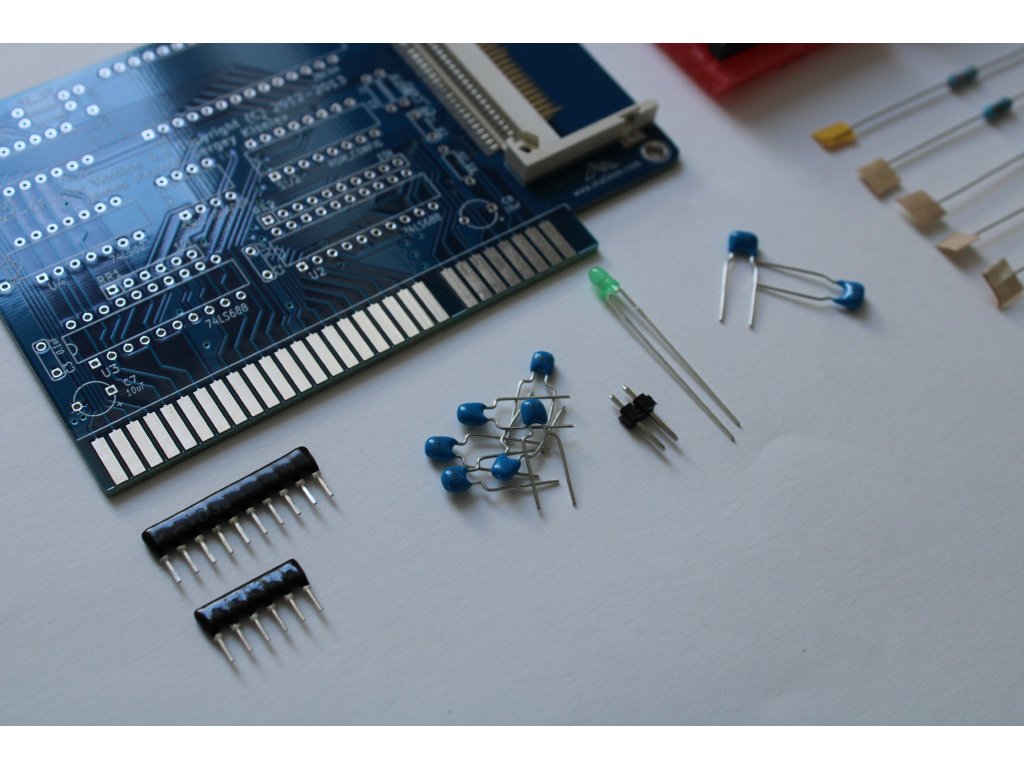

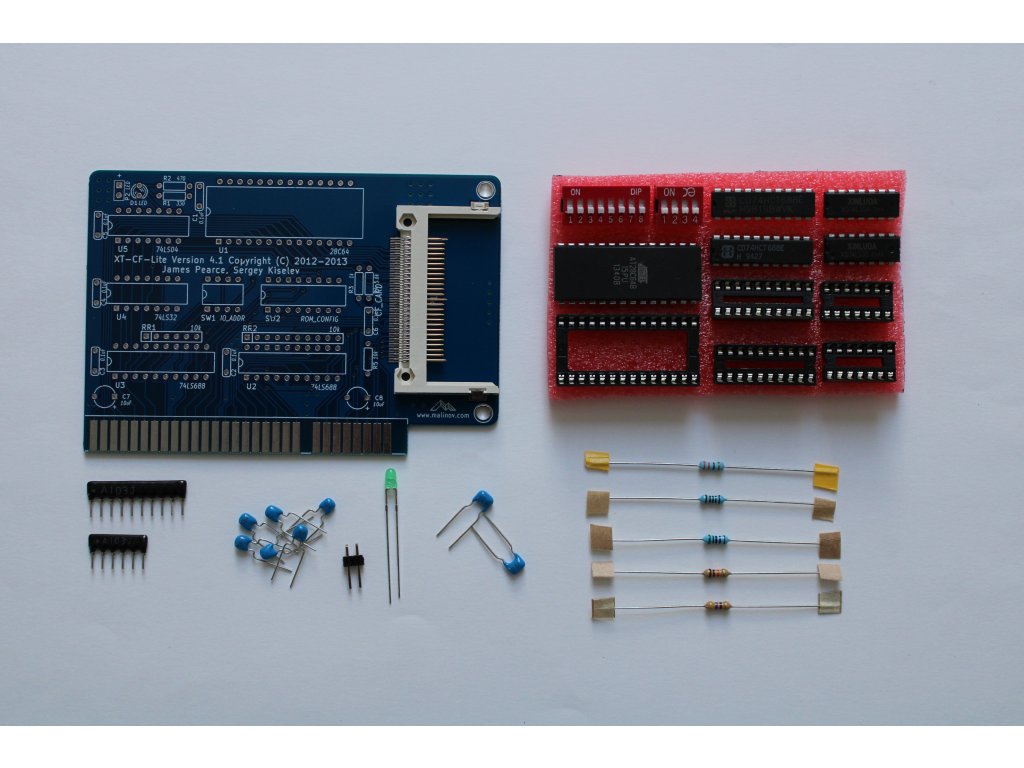

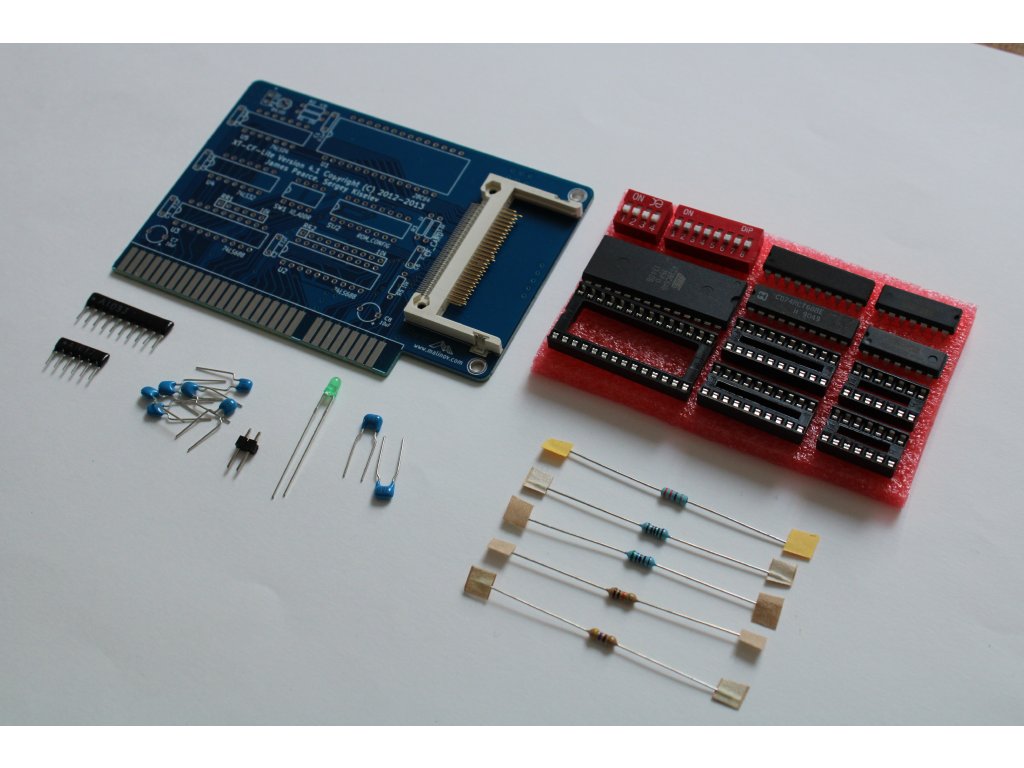

kit of the components for assembling PC XT/AT CF bootable card designed by Sergey Kiselev

- blank PCB V4.1
- CF card connector (not soldered)
- 6pcs 0.1uF capacitor
- 2pcs 10uF capacitor (standard electrolytic capacitors, not ceramic as shown in the photo)
- 3mm LED diode
- 2x1 pin header

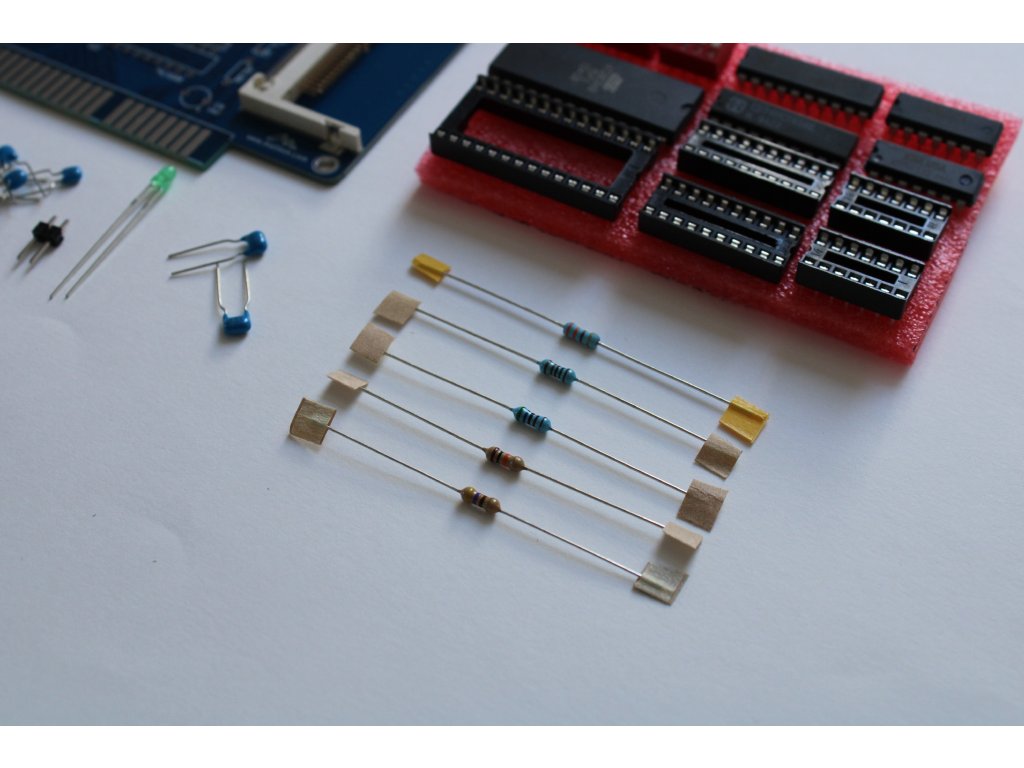

- set of resistors and resistor networks
- AT28C64 EEPROM pre-programmed with IDE_XT.BIN (used due to poor availability)
- 74LS32
- 74LS04
- 2x 74LS688 (used and tested due to poor availability)
- set of 14, 20 and 28 pin DIP sockets
- 4 and 8 position DIP switches

documentation is available on: https://github.com/skiselev/xt-cf-lite-v4

Item weight: 48g
