ZX 48 Spider Spectrum Harlequin assembled

Product detailed description

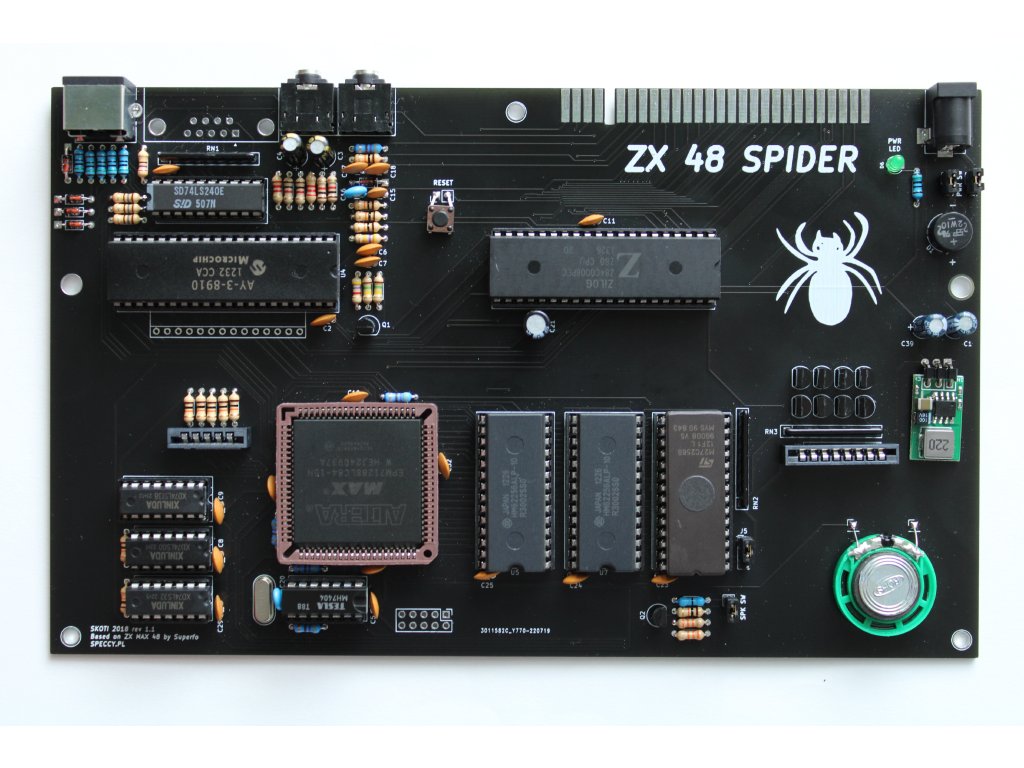

ZX Spectrum clone based on Altera  EPM7128, fully assembled, fits original case of ZX Spectrum 48K or 48K+

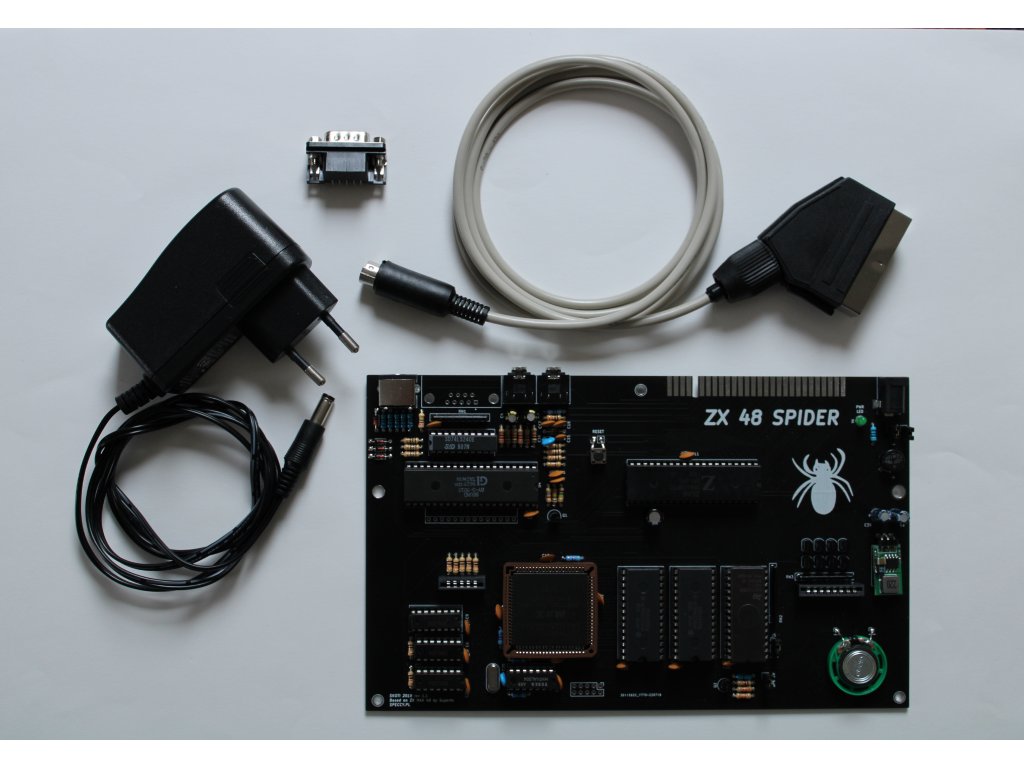

- you will receive fully assembled and tested ZX 48 Spider mainboard, RGB to SCART cable and 12V/1A power supply
- two ROMs available, selectable by jumper (licence free OpenSE ROM and diagnostic Alford v0.37 )
- AY audio output is available on EAR/MIC and SCART connector

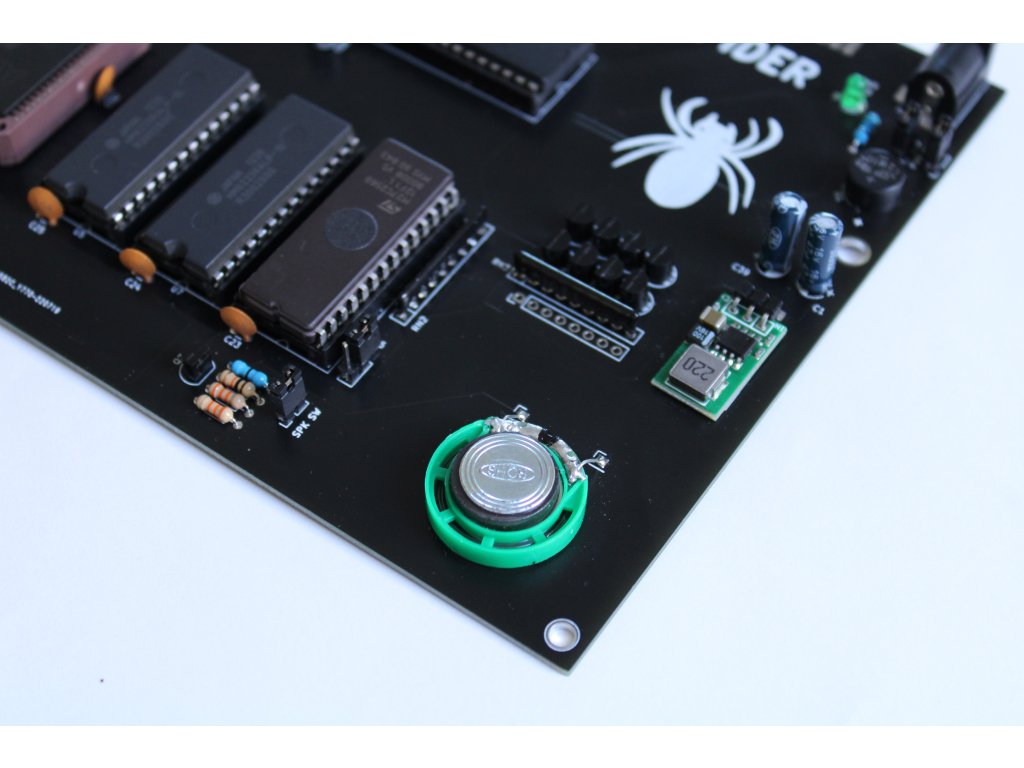

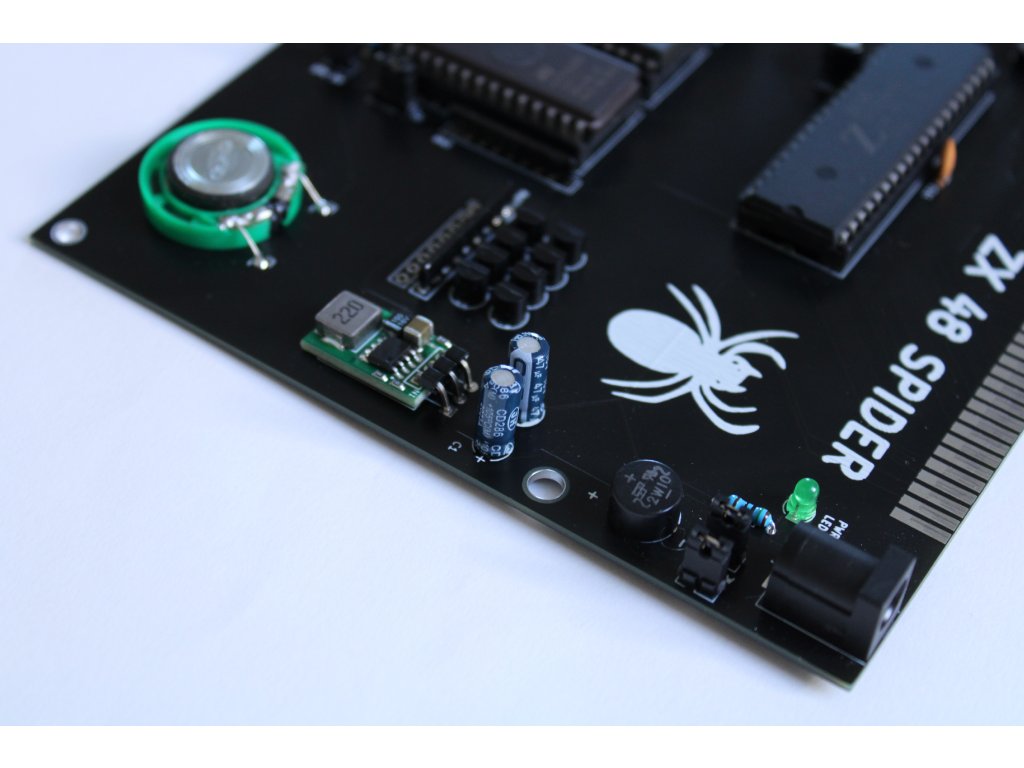

- low efficient LM7805 linear regulator is replaced with modern DCDC converter, overheating is reduced to minimum
- total consumption of about 0.2A from 12V DC power supply
- very good compatibility with original ZX Spectrum, works with DivIDE, DivMMC and other hardware
- SCART cable is of black color, not grey as shown on the photo

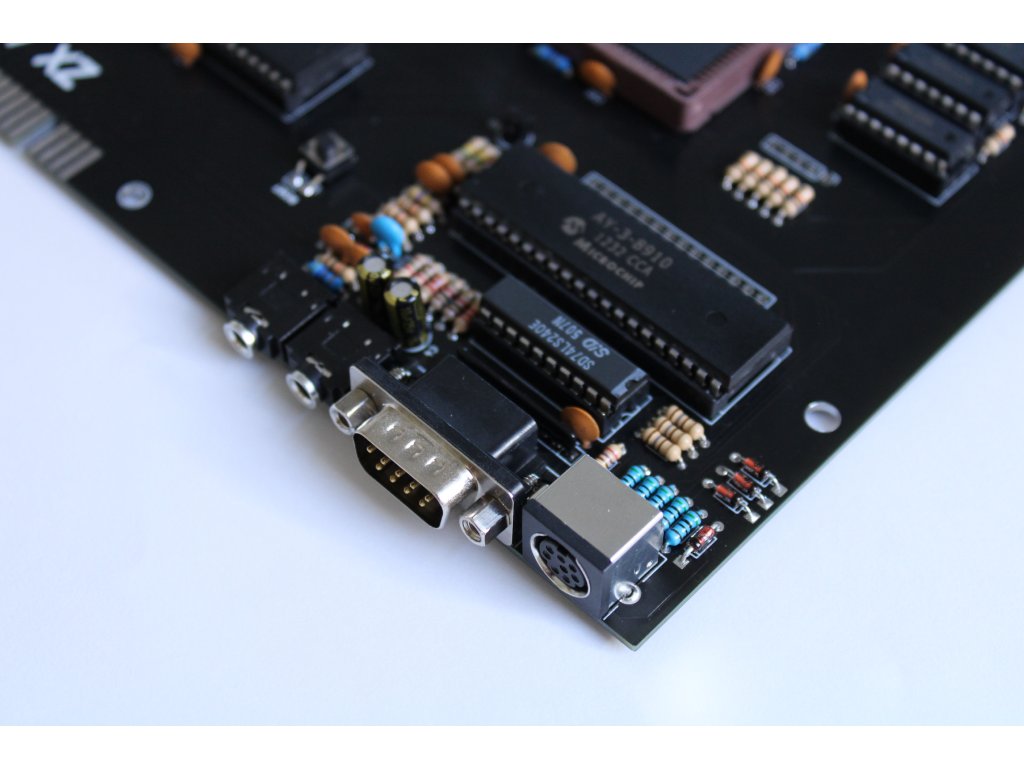

D-SUB 9 connector for Kempston joystick is not soldered since it doesn´t fit original case without making an cutout. It's up to you, use it or not. 74LS240 must be removed from socket if external interface with Kempston joystick is enabled to avoid conflict on data bus.

 documentation is not included, more info on: https://github.com/konkotgit/ZX-48-Spider
