ZX MAX 128 Spectrum clone Harlequin assembled
Product detailed description

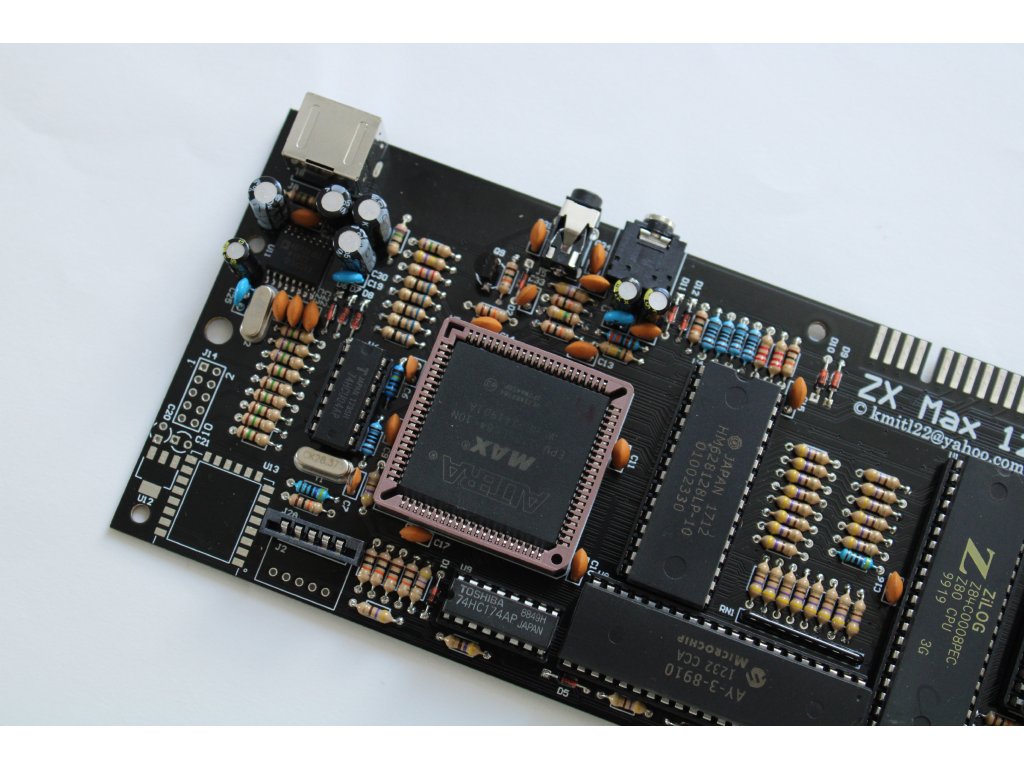

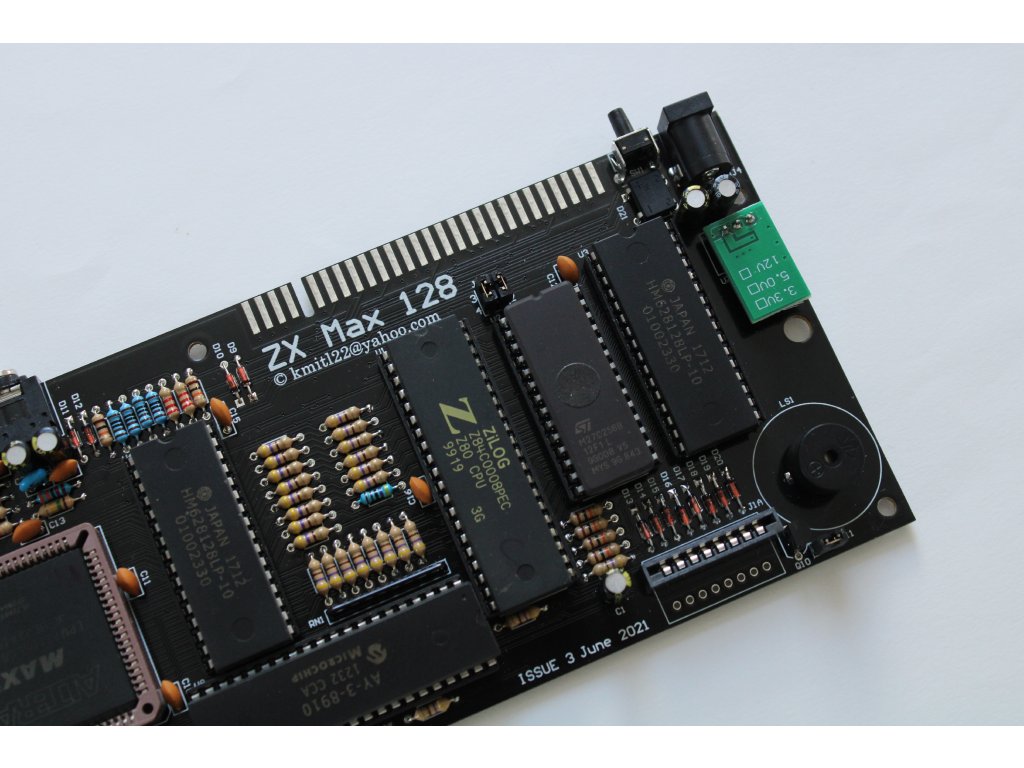

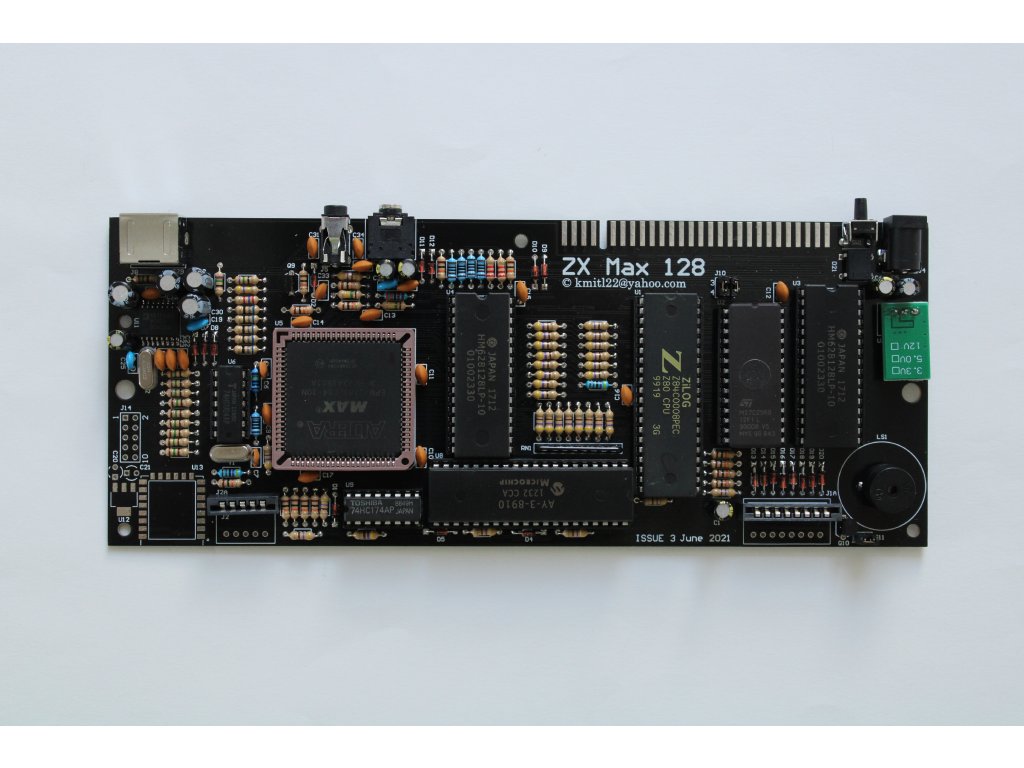

ZX MAX 128, the ZX Spectrum clone based on Altera EPM7128, fits original case of ZX Spectrum 48K or 48K+

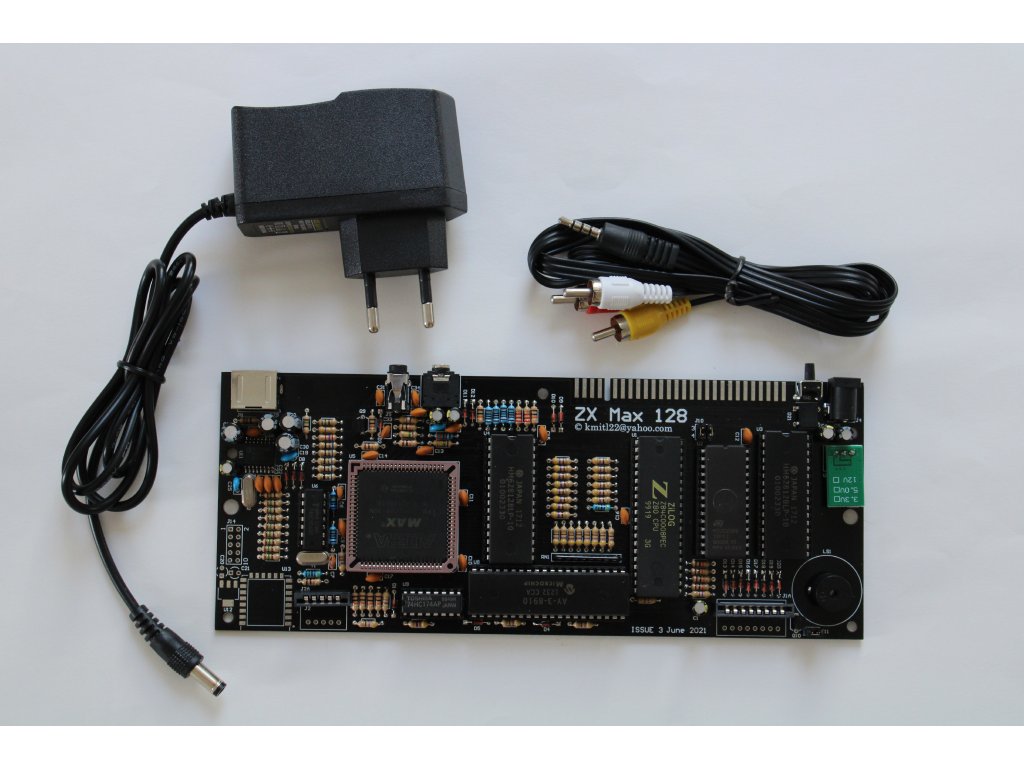

you will receive fully assembled and tested ZX MAX 128 mainboard, AV cable and 12V/1A power supply
- PCB version 3
- 32K ROM (27C256) and 128K RAM
- AY-3-8910 sound chip

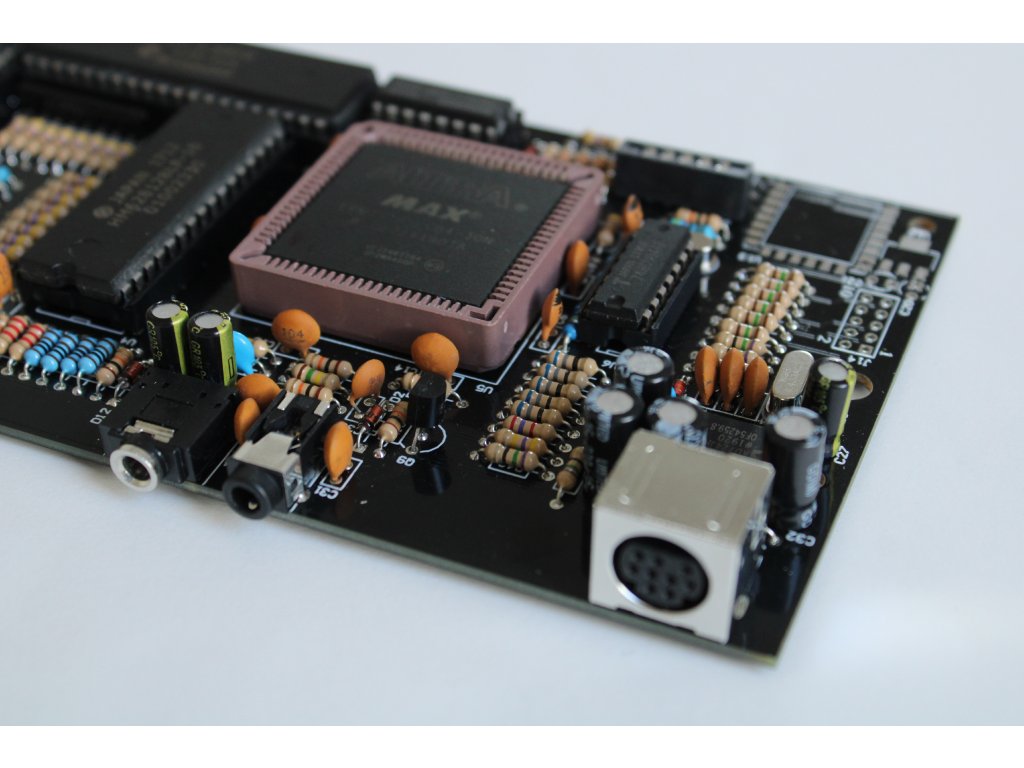

- AY audio output is available on EAR/MIC and SCART connector

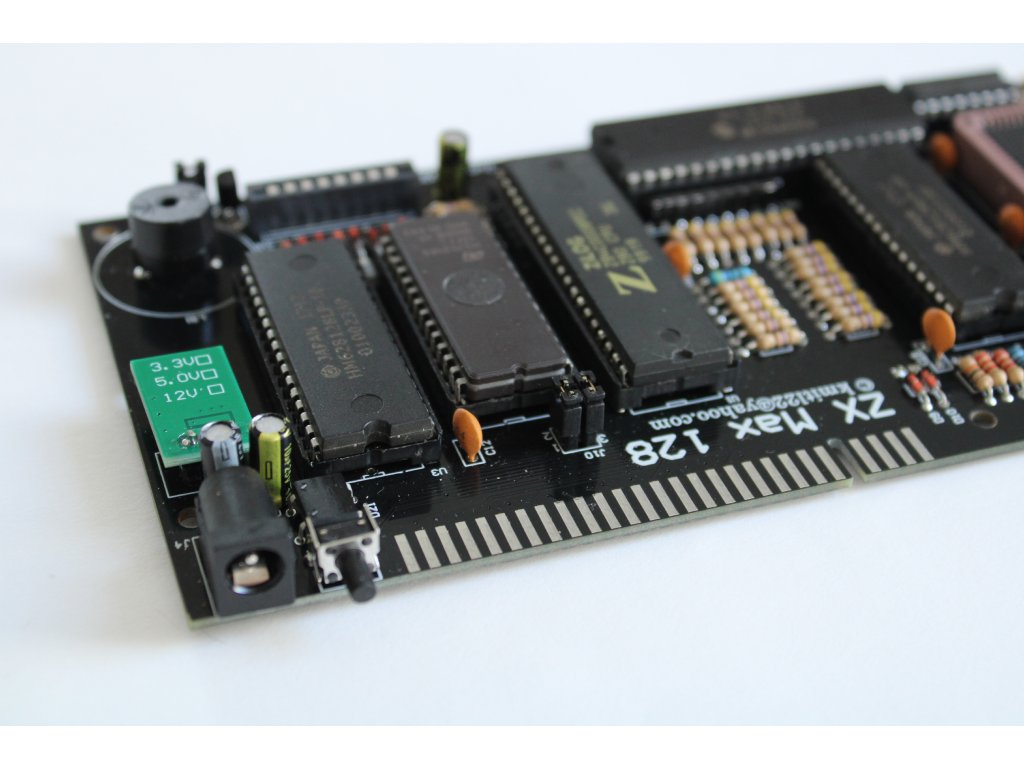

- low efficient LM7805 linear regulator is replaced with modern DCDC converter, overheating is reduced to minimum
- total consumption of about 0.2A from 12V DC power supply
- very good compatibility with original ZX Spectrum, works with DivIDE, DivMMC and other hardware
- supplied either with original Z80 CPU or alternative SHARP LH0080A CPU

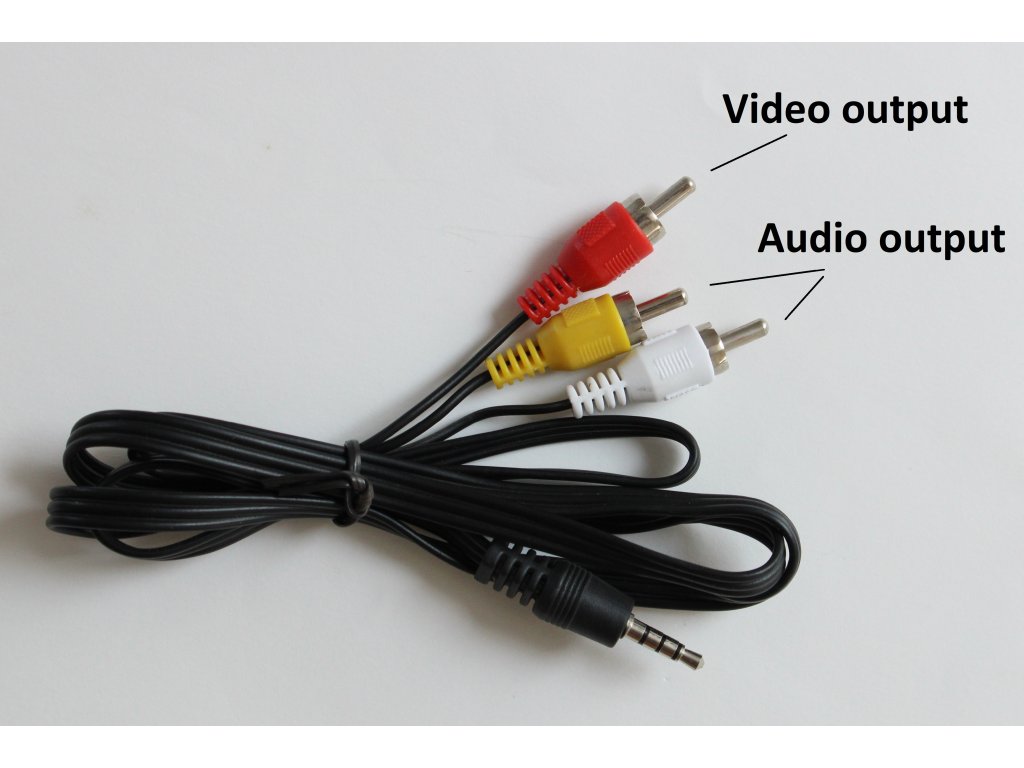

note that video output is available on RED chinch connector,
use RGB SCART cable for the best video quality, you can adapt widely available Sega Mega Drive 2 SCART cable (works fine even unmodified), the cable schematic diagram and project documentation are available on:
https://github.com/DonSuperfo/ZX-Max-128
Additional parameters
| Category: | ZX Spectrum |
|---|---|
| Weight: | 0.42 kg |
